Floating Stairs in Koh Samui: The Complex Engineering Behind Minimalist Luxury

In modern tropical architecture, few design features capture the essence of luxury quite like the floating (cantilevered) staircase. For high-end property developments in Koh Samui, these stairs create an illusion of weightlessness, allowing natural light to flow uninterrupted through open-plan living spaces. However, what looks effortlessly simple on the outside is actually a highly complex, demanding structural engineering puzzle.

Behind every stunning floating stair is a sophisticated system designed to manage extreme torsional forces, deflection, and load-bearing challenges. If you are planning to build or renovate a luxury property on เกาะสมุย, understanding the structural reality of these architectural masterpieces is crucial to ensuring your villa remains both beautiful and safe for decades to come.

Demystifying the Cantilever: How Floating Stairs Actually Work in Koh Samui Properties

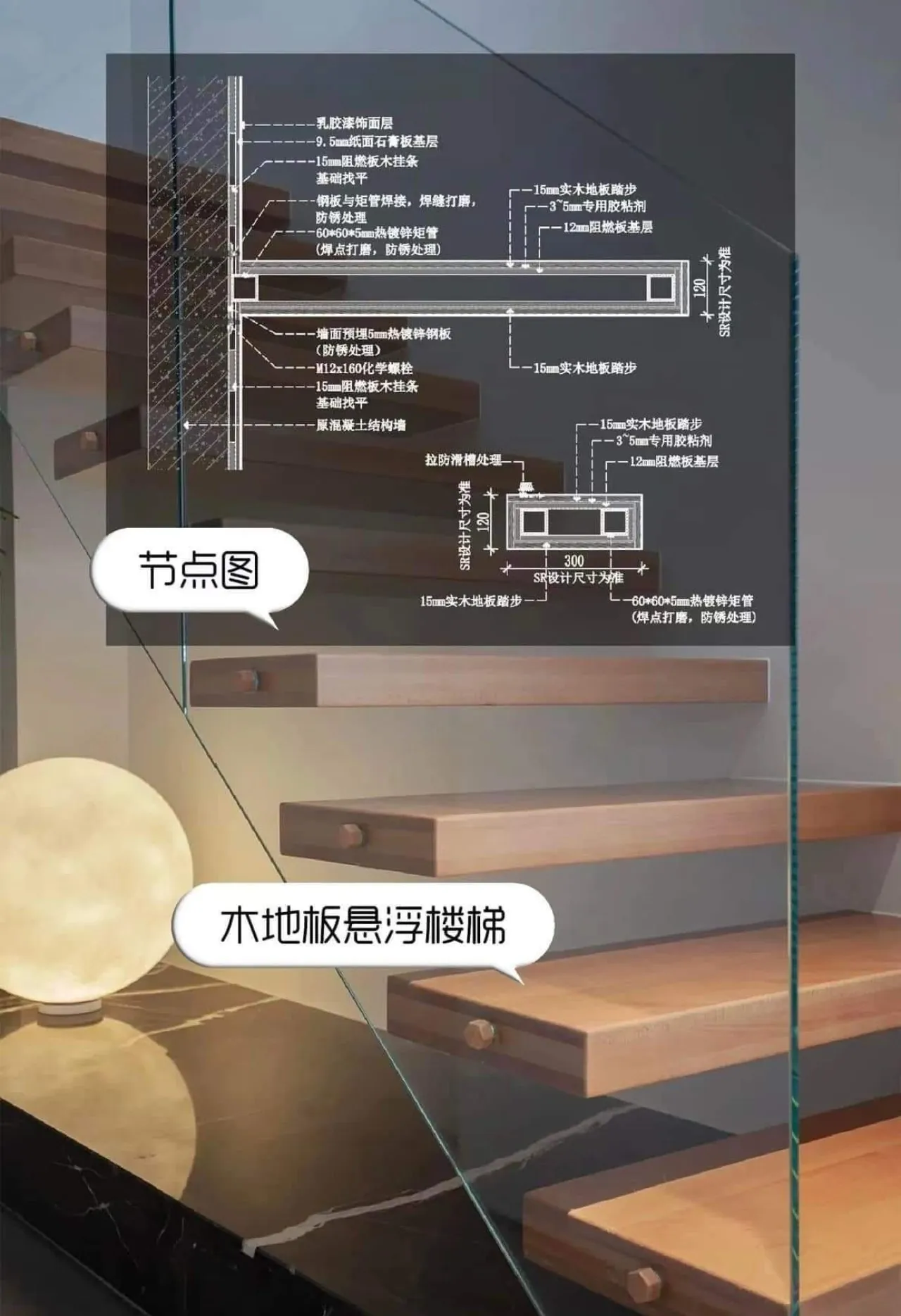

To the untrained eye, floating steps appear to project directly out of a plasterboard wall with no visible support. In reality, a floating staircase in a Koh Samui villa relies on a hidden, heavy-duty structural skeleton anchored deep within the building's main framework.

+--------------------------------------------------------+
|                 VISUAL ILLUSION (Floating)             |
|  [Wood Cladding] ---> [Air/Space] ---> [Glass Railing]  |
+--------------------------------------------------------+
                           |
                           v  (Supported by)
+--------------------------------------------------------+
|                HIDDEN STRUCTURAL REALITY               |
|  [M16 Studs] -> [Heavy Steel Stringer] -> [RC Wall]    |
+--------------------------------------------------------+

There are three primary engineering components that make this minimalist design structurally sound:

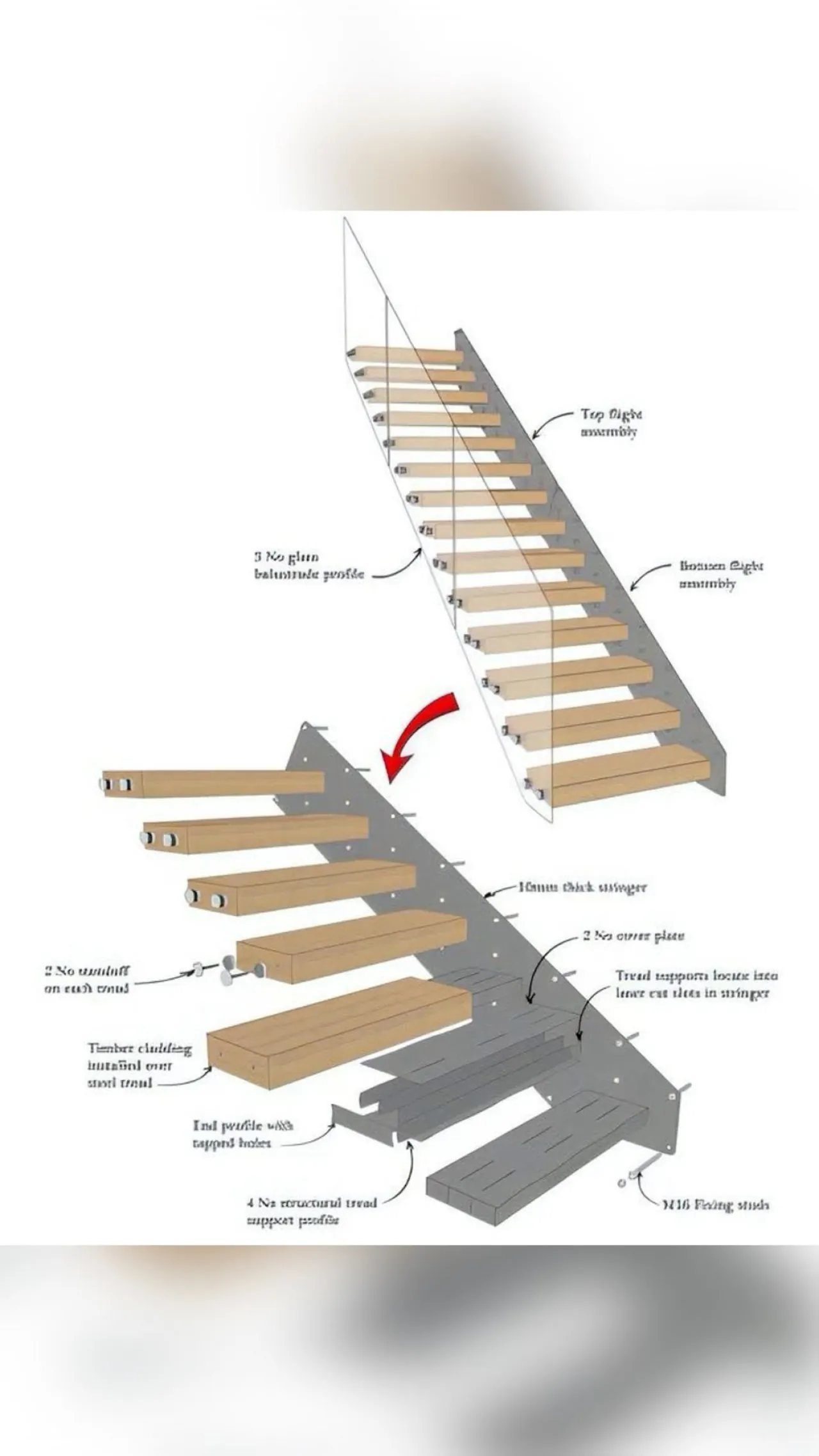

1. The Heavy-Duty Steel Stringer (The Backbone)

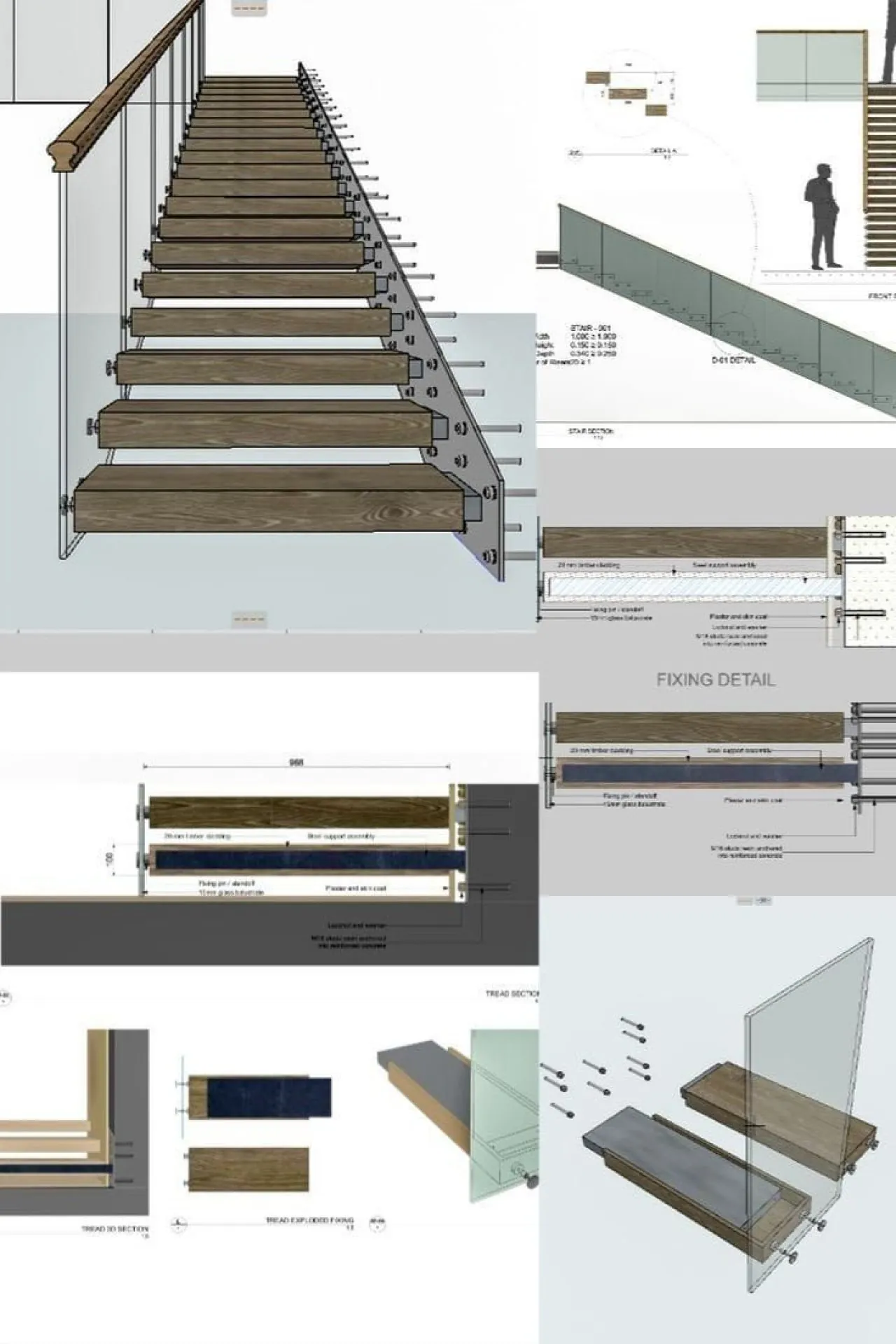

The true structural workhorse of a floating staircase is a heavy-duty steel stringer, typically fabricated from 10mm thick steel plate or custom-engineered box sections. This stringer is either recessed directly inside a reinforced concrete (RC) wall or bolted securely to structural timber framing.

During the rough-in stage of your villa construction on เกาะสมุย, this steel backbone must be aligned with millimeter precision. Any minor deviation at the base stringer will multiply across the length of the staircase, resulting in uneven treads.

2. The Cantilevered Steel Tread Supports

Projecting outwards from the main stringer are structural steel tread support profiles. These are often laser-cut and welded directly to the stringer to form rigid cantilever arms.

  • Tread Supports: These profiles must be incredibly stiff to limit vertical deflection (bouncing) when a person walks up or down.

  • End Profiles: Features such as tapped holes are engineered into the ends of these supports to allow for the direct attachment of glass balustrade standoffs.

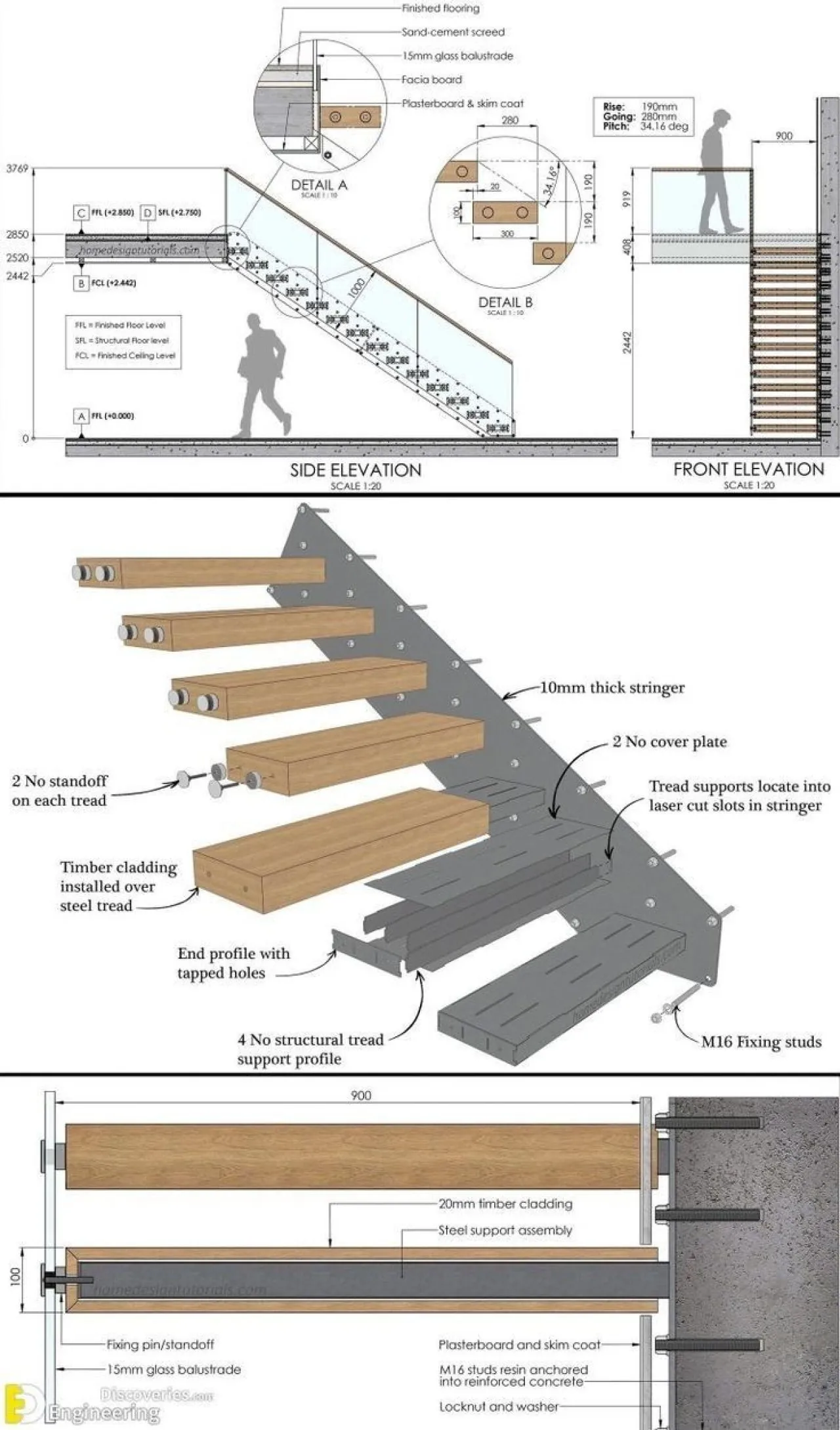

3. Structural Wall Anchorage (M16 Resin-Bonded Studs)

To prevent the staircase from pulling away from the wall under load, the steel stringer must be anchored using industrial-grade fastening systems. In reinforced concrete walls, this is achieved by using M16 studs resin-anchored (chemically bolted) deep into the concrete core. This chemical bond prevents structural slippage and effectively transfers the downward live load and rotational torque directly into the building's structural foundations.

Why Cheap DIY Floating Stairs Fail in Tropical Island Environments

Building a cantilevered staircase on an island like Koh Samui introduces unique environmental challenges that general mainland contractors often overlook.

  • Concrete Quality & Salt Air Corrosion: High humidity and salty air on เกาะสมุย can rapidly accelerate the corrosion of exposed steel. If the internal steel stringer is not sandblasted, treated with premium anti-rust primers, or hot-dip galvanized, structural integrity can degrade inside the wall cavity where it cannot be easily inspected.

  • Wood Movement: The timber cladding (commonly 20mm hardwood or premium oak facings) installed over the steel tread supports must be carefully selected and kiln-dried. In tropical climates, natural wood expands and contracts significantly. If the cladding does not feature a slight internal clearance void or flexible adhesive bonding, the wood will warp, crack, or split against the rigid steel frame underneath.

  • Vibration and Deflection: Standard stairs can flex slightly without issue. However, a floating stair with a 15mm tempered glass balustrade attached directly to the treads via standoff pins cannot tolerate deflection. If the steel stringer flexes even a few millimeters, the glass panel will experience massive localized stress at the fixing pins, potentially leading to spontaneous glass breakage.

Structural Calculations: Why Professional Engineering Matters

Before a single piece of steel is cut, a structural engineer must perform precise load calculations. In luxury Koh Samui villa construction, we look at two types of loads:

  1. Dead Load: The static weight of the staircase itself, including the internal steel support, the concrete screed, the timber cladding, and the heavy 15mm glass balustrades.

  2. Live Load: The dynamic weight of people moving on the stairs. Engineering standards typically require residential stairs to support a concentrated live load of at least 1.5 kN to 2.0 kN (approximately 150–200 kg) per tread with minimal deflection.

Build Your Dream Minimalist Staircase Safely in Koh Samui

               [ 15mm Glass Balustrade ]
                         |
                   (Standoff Pins)
                         |
  [ 20mm Wood Cladding ]=======[ Structural Steel Tread ]
                                        |
                             (Heavy 10mm Steel Stringer)
                                        |
                             [ M16 Resin-Bonded Studs ]
                                        |
                             [ Reinforced Concrete Wall ]

A floating staircase is not a weekend DIY project or a task for cheap, uncertified labor. It is a critical structural element that requires experienced engineering, heavy steel fabrication, and flawless installation.

If you are developing a luxury villa, renovating a property, or experiencing structural issues with your current staircase in Koh Samui (เกาะสมุย), partner with the island's trusted structural experts. CHK Structure and Service Co., Ltd. has over a decade of hands-on experience delivering world-class engineering and architectural solutions.

We ensure your minimalist dreams are built on a foundation of uncompromised structural safety. Contact us today to discuss your next high-end structural project.
