Designing and Building Safe, Modern Cantilever Roofs in Koh Samui

When you imagine a luxury villa in Koh Samui, you often picture seamless indoor-outdoor living, wide open terraces, and unobstructed ocean views. To achieve this modern, floating look for a patio or carport without bulky support columns, architects turn to a complex architectural feature: the cantilever roof.

However, turning that sleek design into a safe, durable reality on our unique island requires deep engineering expertise. At CHK Structure and Service Co., Ltd., with over 10 years of experience serving over 3,000 households across Koh Samui, we understand that a cantilever roof must withstand more than just gravity—it must stand strong against tropical rain and coastal wind uplift. This article breaks down the complex engineering provided in detailed structural analysis infographics and applies it to the context of Koh Samui construction.

Understanding the Engineering Principles: Why it’s Crucial for Koh Samui

The primary challenge of a cantilever roof is managing intense, asymmetric forces. A standard "two-post" roof distributes load evenly down. A cantilever pushes all the load onto a single supporting column or a wall, creating massive leverage at the connection point.

This leverage results in two primary structural concerns that CHK Structure and Service expertly addresses:

  1. Bending Moment: This is the force trying to "bend" or snap the support column where the roof connects. A significant part of the engineering focus shown in the infographic is designing the main column and its connection to handle this negative bending moment.

  2. Uplift and Deflection: This is especially relevant in Koh Samui. While the roof needs to support its own weight and rain loads (dead loads and live loads), a much greater force on an island is the upward pressure from tropical winds. A poorly designed cantilever can act like a sail, putting immense stress on the base connections.

Key Structural Components of a Durable Cantilever Roof System in Samui

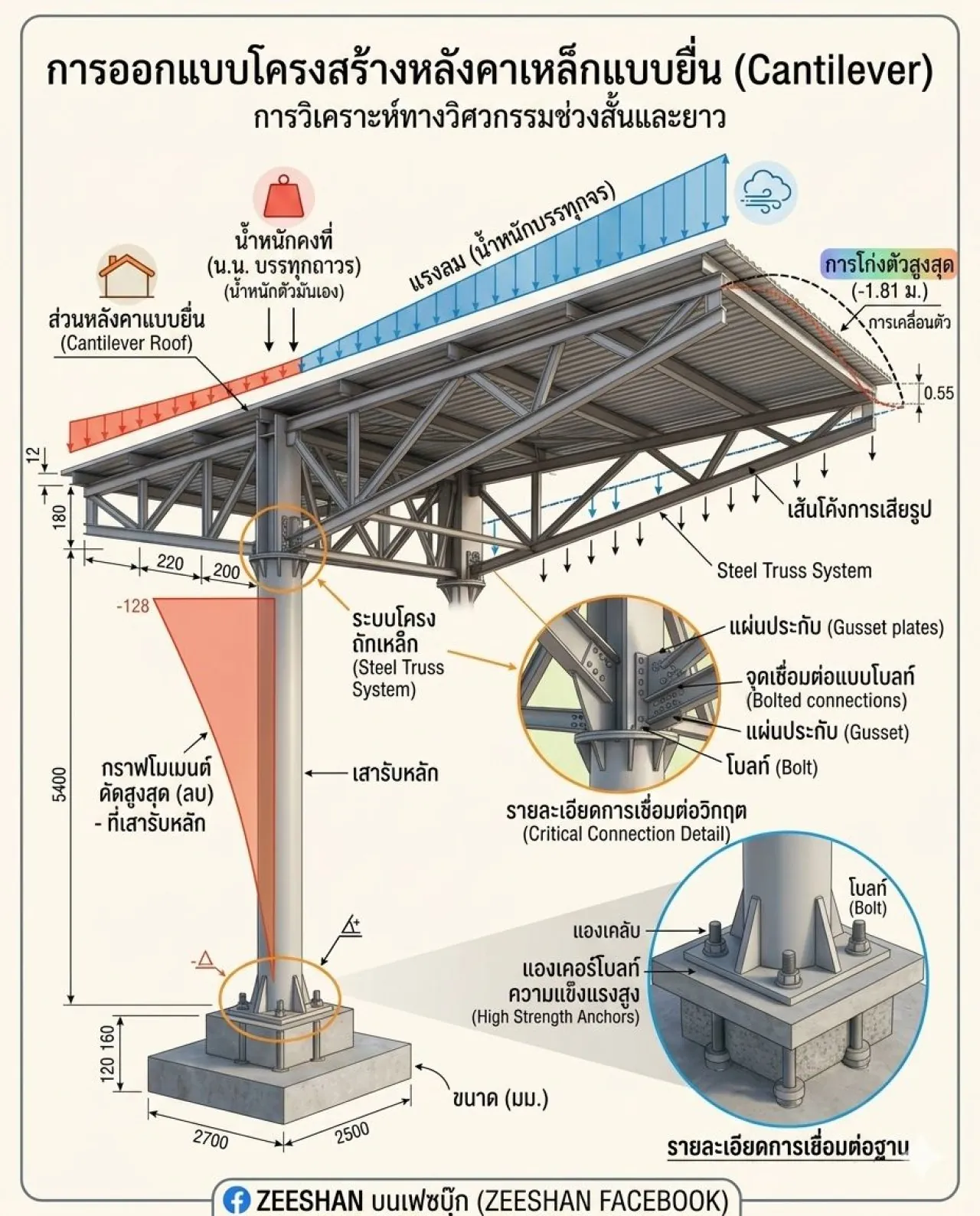

Based on the detailed engineering analysis (visible in the structural image), a safe and functional cantilever roof in a challenging climate like Koh Samui relies on several interlocking components. For example:

1. The Main Supporting Column & Foundation

The column (labeled as "เสารับหลัก") is the single point of failure. It must be robust enough to handle the massive moment forces. Equally critical is the connection of this column to the ground. The infographic highlights essential features:

  • Detailed Base Connection: A simple anchor will not suffice. The image shows a critical need for a large, properly designed foundation block and a high-strength steel base plate.

  • High-Strength Anchors (Bolt): These are vital for resisting the upward pull of the wind. A secure, deep anchor prevents the entire structure from toppling. CHK Structure and Service meticulously inspects and installs these to local engineering specifications.

2. The Steel Truss System (โครงถักเหล็ก)

For longer cantilevers (extended roof sections, labeled "ส่วนหลังคาแบบยื่น"), the primary roof structure must be lightweight yet incredibly stiff. A basic I-beam may not be sufficient for the long spans popular in Koh Samui architecture. A steel truss system, as seen in the infographic, is preferred. Trusses are engineered to transfer loads efficiently, minimizing the deflection (bending) of the roof tip, which is a common visual and structural defect.

3. Critical Connections and Gussit Plates

The point where the truss attaches to the column is the area of highest stress. The engineering diagram emphasizes details here:

  • Bolted Connections (จุดเชื่อมต่อแบบโบลท์): While welding is strong, properly engineered bolt connections offer specific advantages, including a degree of ductility that allows for slight, managed flexibility under stress (useful in storm winds).

  • Gusset Plates (แผ่นประกับ): These steel plates reinforce the connection points between the truss members and the column, spreading the load more evenly and preventing tearing or buckling of the main steel components.

Managing Environmental Challenges Specific to Koh Samui

Building in Koh Samui brings unique environmental factors that must be engineered into any cantilever roof design.

  • Tropical Wind and Updraft: During a severe storm, the primary concern isn't the weight of the water, but the wind lifting the roof. A cantilever is uniquely vulnerable. Our engineers design the entire load path, from the outer edge to the deep foundation anchors, specifically to counter uplift.

  • Coastal Corrosion: The salty air across Koh Samui means all steel structures, especially the critical connection bolts and gusset plates, require advanced corrosion protection. At CHK Structure and Service, we utilize high-galvanization steel, specialized coatings, and stainless steel fasteners for exposed or critical coastal connections to ensure longevity.

  • Heavy Rainfall and Drainage: Unlike snow, tropical rain accumulates quickly and must be diverted immediately to prevent excessive weight on the cantilever tip. Our designs integrate large-capacity, hidden drainage systems (gutters and downpipes) within the structural elements to keep the design clean without sacrificing safety.

Can I Build a Cantilever Roof on my Koh Samui Property?

The modern look of a column-free terrace is achievable, but it is not a DIY project. It requires professional engineering calculations. You must start with an assessment of your existing structure.

  1. Retrofitting an Existing Property: If you are adding a cantilever roof to an existing home, an engineer must first confirm that your existing walls, columns, or foundations can support the massive bending moment. This often requires structural reinforcement before the extension is added.

  2. New Builds: This is the ideal time to plan a cantilever. CHK Structure and Service can coordinate directly with your architect during the design phase to integrate the necessary deep foundation piles and reinforced concrete columns from the ground up, making the structure seamless and extremely strong.

We provide a comprehensive initial consultation across Koh Samui to assess the structural feasibility of your vision.

Your Expert Local Partner for Advanced Roofing and Extensions on Samui

Ready to elevate your home with a stunning, column-free extension? Don't leave it to chance. The engineering is the most critical part of any cantilever roof in Koh Samui.

Partner with the local experts who have been ensuring structural safety and beauty on Koh Samui for over a decade. Whether you are building from scratch or retrofitting your dream villa, [CHK Structure and Service Co., Ltd.] delivers uncompromised expertise.

Our team has hands-on experience on over 3,000 properties on Koh Samui, making us the most reliable choice for specialized roofing projects. We understand the island's unique requirements, from wind loads to salt spray.

Contact CHK Structure and Service today for an expert consultation:

  • Location: 64/33 Moo 2, T. Mae Nam, A. Koh Samui, Suratthani 84330

  • Phone & WhatsApp: 063-841-9593

  • Line ID: samuifix

We deliver durable, expertly engineered solutions that stand the test of time and the forces of nature in Koh Samui.
